Laser Welding
with Diode Lasers

High stability and low distortion characterize laser welding with one of our lasers. Even at high welding speeds, excellent seam surfaces can be achieved on the workpiece. Typical application fields for laser welding machines are the joining of steel, aluminum, copper or plastics.

discover more

Laser welding machines in industry

Nowadays, hardly any branch of industry could survive without laser welding technology because almost every manufacturing process involves metals or plastics that have to be joined together. Laser beam welding is highly efficient and ideally suited for this purpose, especially when high welding speeds, narrow weld seams, and low thermal distortion are required.

Laser technology is used in many laser-based joining processes. A distinction is made between laser soldering, heat conduction welding, and deep welding with lasers.

Laser beam soldering generally involves melting an additional material. This filler material wets the surfaces of the components to be joined and thus joins them together after it has solidified. This process is mainly used in the automotive industry by a laser welder in combination with a robot for joining steel chassis.

Heat conduction welding and deep penetration welding, conversely, do not automatically align with any one industry or individual application. Control cabinets, sensor housings, bellows, electronic devices, batteries, sheet metal in various applications, coated and uncoated sheet metal, heat exchangers, saw blades and band saws, thick sheet metal in shipbuilding, drinking water pipes, sinks, tailored blanks, stainless steel and aluminum car bodies, beer barrels and much more are welded and joined with diode lasers.

Laser Beam Welding in Process Engineering

Thanks to process-related advantages, such as high welding speeds or high degrees of automation, laser beam welding systems under EN ISO 4063 process 52 are increasingly assuming a key function in production technology. Narrow, slim, almost parallel seam flanks enable resource-saving seam preparations to be undertaken, which result in low shrinkage. The latter can also be implemented using laser-MSG hybrid welding, which combines the advantages of two different welding processes through synergistic effects. In particular, this ensures greater capabilities in terms of gap bridging, and consequently is not sensitive to tolerances in terms of the weld seam preparation.



Materials Engineering

Irrespective of the sheet thickness and component geometry, various material combinations (ranging from unalloyed and high-alloy steels to non-ferrous metals without irregularities) can undergo laser welding. In addition to these combinations, different material pairings are becoming increasingly important in today’s application technology. The mechanical and technological properties to be fulfilled, such as for tailored blanks, are at the forefront of the joining activity in question. They correlate with the heat guidance of the process at hand, which can be influenced by special optics or the feeding-in of cold or hot wire.

Laser Beam Welding versus Laser Beam Brazing

What actually is the difference between laser welding and laser brazing, and what advantages do diode lasers offer in terms of metal welding?
In our video, Sales Director Markus Rütering offers some basic answers and reveals interesting examples of application.

If you have any questions or would like to learn more about applications and processes in laser welding, do not hesitate to contact us.


LDF Diode Lasers in Chassis Construction

Ultimate system availability and process stability in three-shift operations; these are the requirements of the automotive industry, and they have been putting diode lasers to the test in all kinds of applications for years. From joining processes, such as welding or soldering, to the heat treatment of components through to the coating of press tools, lasers are the ideal welding devices for automotive production.

Remote laser welding with beam converter

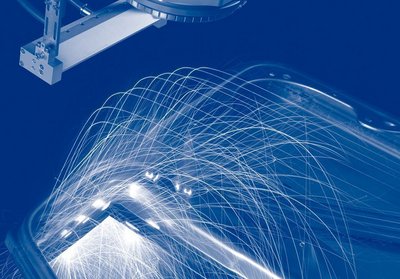

Remote laser welding is used with increasing frequency to attain a quicker and more flexible process control when welding vehicle chassis or ships’ sides. In this, the laser beam is directed onto the workpiece from a distance of more than one meter, meaning that this application requires a combination of high laser power and high beam quality. Laserline LDF diode lasers with beam converter are an alternative to a fiber laser welding machine. They offer an optimal system solution for this special manner of keyhole welding.

Welding Tailored Blanks

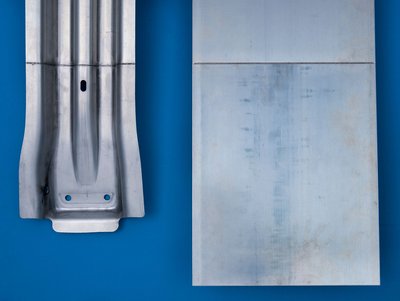

For the laser-based welding of tailored blanks, shaped blanks are created from several sub sheets, which will later be transformed into car body parts. However, the process is often affected by inefficient, easily dirtied lasers that also leave unpleasant metal splashes on the sheet and welding optic. Laserline’s laser welding machines generate an extremely calm molten pool that hardly creates any spatter at all. They are also resistant to dust and moisture-intense process environments throughout the entire welding process.

Journal

Diode lasers and metal welding

At the start of our short series, we clarified what exactly a diode laser is, and today we are looking at its fields of application. As previously mentioned, these fields are broad and diverse, even though there are certain key areas in which diode lasers are very much at the forefront. One of them is the process of metal welding. Diode lasers play a decisive role in various industrial areas: from the wafer-thin copper electric contact-sheet to centimeter-thick ships’ sides made from steel, countless metal components are joined by welding. Today, diode lasers cover the entire joining spectrum and offer suitable tools for a plethora of welding applications. Compared to traditional arc welding methods like MIG/MAG or WIG welding, as well as other laser-based welding techniques, welding with diode lasers is often superior.

Benefits
In fact, diode lasers are actually ideal for industrial welding processes. There are several reasons for this. Firstly, the combination of high power output and comfortable spot sizes allows for optimum gap bridgeability. Secondly, the energetic homogeneity of the spot and the high absorption capacity of a typical wavelength mix generate unusual calm melt pools that leave almost no impurities on the areas adjoining the seams through spatters or wavelets. This guarantees excellent seam qualities. Thirdly, diode lasers provide the highest energy efficiency of any industrial laser, which, along with their low maintenance costs, also makes them perfect for welding in series production. Fourthly, these lasers can be used for heat conduction welding as well as keyhole welding applications.

Keyhole welding is a typical laser welding method for components with medium to substantial material thicknesses. The joining partners are irradiated with high intensity to create a vapor capillary in the direction of the beam – a tube-like shape with a hollow filled with metal vapor (keyhole). This enables the deeper layers of the material to be molten; the depth of the melt zone is usually greater than its width. The inner walls of the vapor capillary also reflect the laser beam so that the absorption of the yielded energy is strengthened, thereby causing a sizable melting volume. Highly stable connections are created between the joining partners that withstand even the most demanding stress. Typical applications are, for example, the joining of tailored blanks in automotive assembly or thick-sheet welding. As combined diode laser systems can reach powers of up to 60 kW today, even ships’ sides of 50 mm thickness, massive steel braces in foundations, or offshore wind turbines can all be welded with only two welding runs (layer and opposite side).

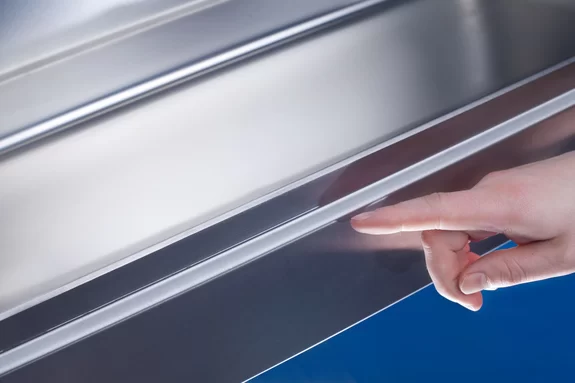

If workpieces of a low material thickness have to be joined, keyhole welding is no longer automatically suitable. The high energy input could cause material separations instead of joining, and would certainly lead to major deformations. As a result, heat conduction welding is almost always used in these cases. With its welding penetration depth of a maximum of 2 to 3 millimeters, the method is also suitable for thin sheets or metal foils. The diode laser fuses the joining partners along the planned seam; the melts merge and then solidify towards the desired weld seam. The material barely distorts, while the joining is exceptionally simple and clearly quicker than WIG welding, for example. Thanks to the homogeneous, even heat exposure of the diode laser, the seams are smooth and non-porous, rarely needing post-processing. This high seam quality makes the method especially ideal for visible areas, as, for example, in the joining of metal sinks. Besides, it has also proven itself in fields outside the sphere of design, such as in geometrically highly demanding components including gaiters for pipes.

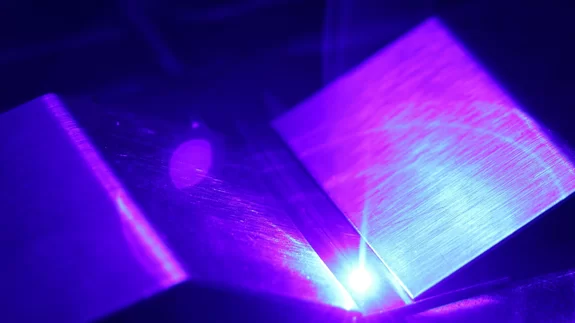

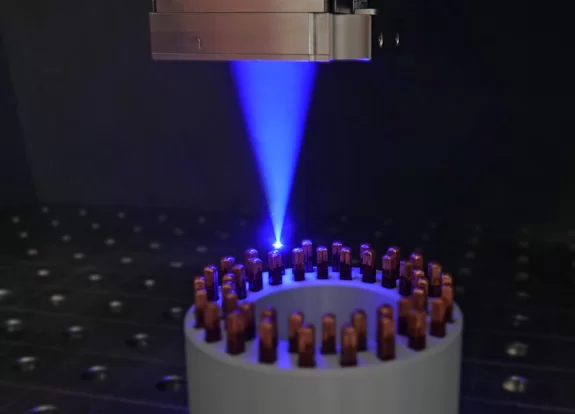

With the development of the LDMblue, a laser with 450 nm and, by extension, the blue light wavelength, the world’s first high-power diode laser is even now available, allowing for the controlled spatter-free heat conduction welding of very thin non-ferrous components made from copper or precious metals such as gold. For these materials, heat conduction welding with the traditional infrared lasers is not a feasible option as the infrared radiation is strongly reflected by non-ferrous metals, meaning that the surface can only be molten with a high-intensity beam. However, blue laser light is very well-absorbed by non-ferrous metals, with the result that the workpieces can be molten with substantially lower energy input as well. In this, even wafer-thin electrical contacts made from copper, e.g. those used in electromobility, can be reliably joined. Here, as well, very smooth and visually pleasing seams are created that are also a winning option thanks to their excellent electrical conductivity, offering a new, innovative procedure, with the corresponding high levels of precision, to industry 4.0 and its high-tech requirements.

As you can see, the diode laser is a real universal tool for metal welding, and is truly without compare. And because work is continuing on optimizing the relationship between laser power and beam quality for every type of diode lasers, the range of fields of application for laser welding will likely grow further.
